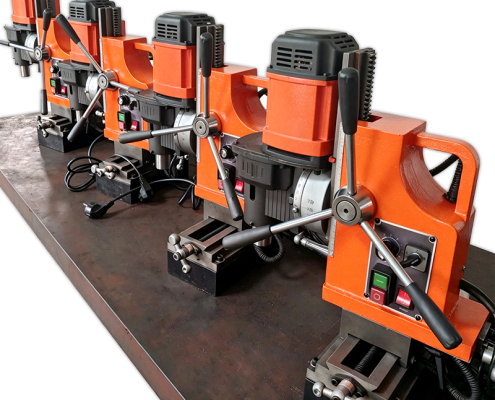

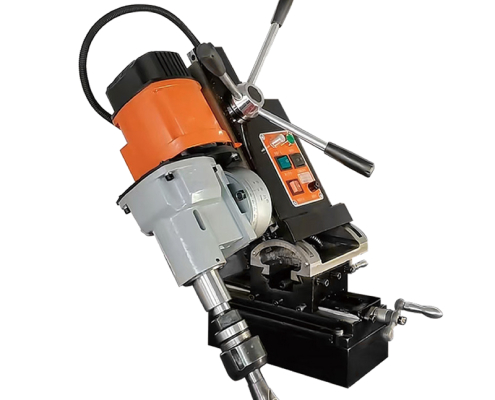

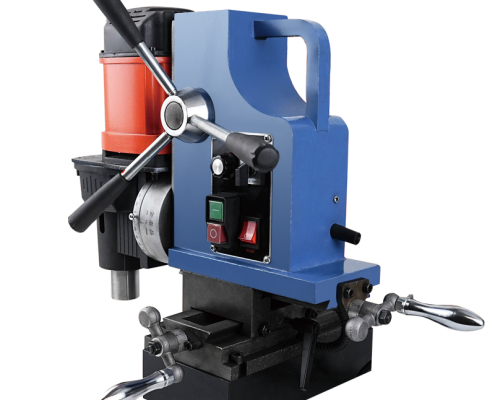

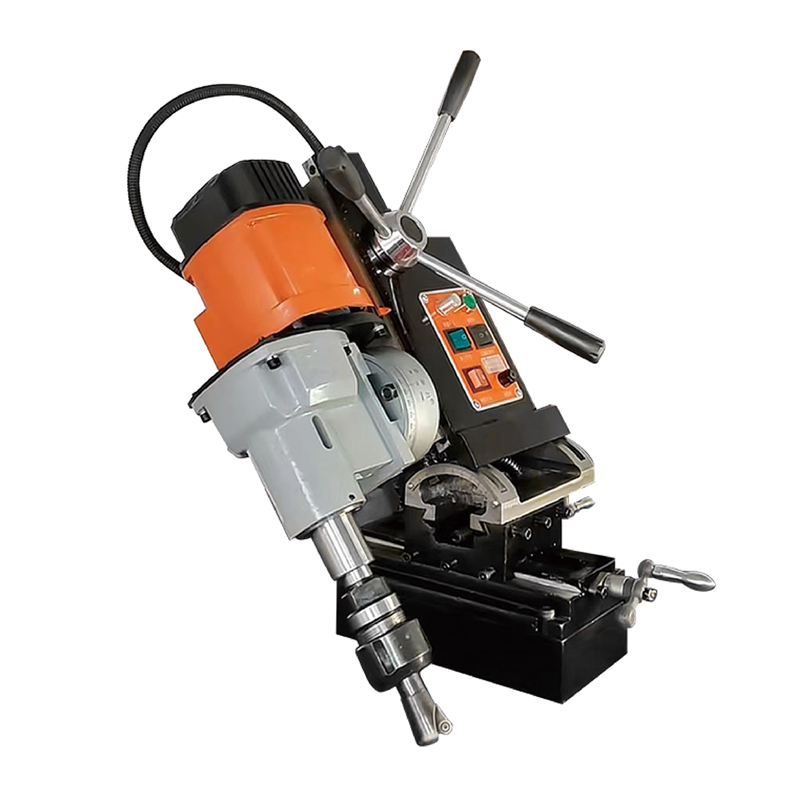

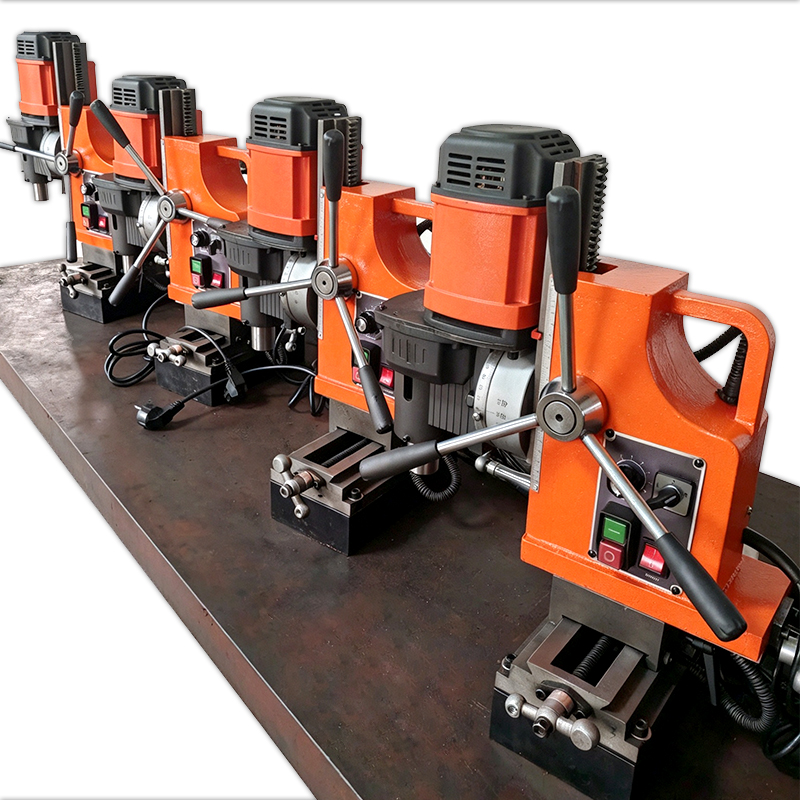

FDX-30 Multi-axis Magnetic Milling and Drilling Machine Series

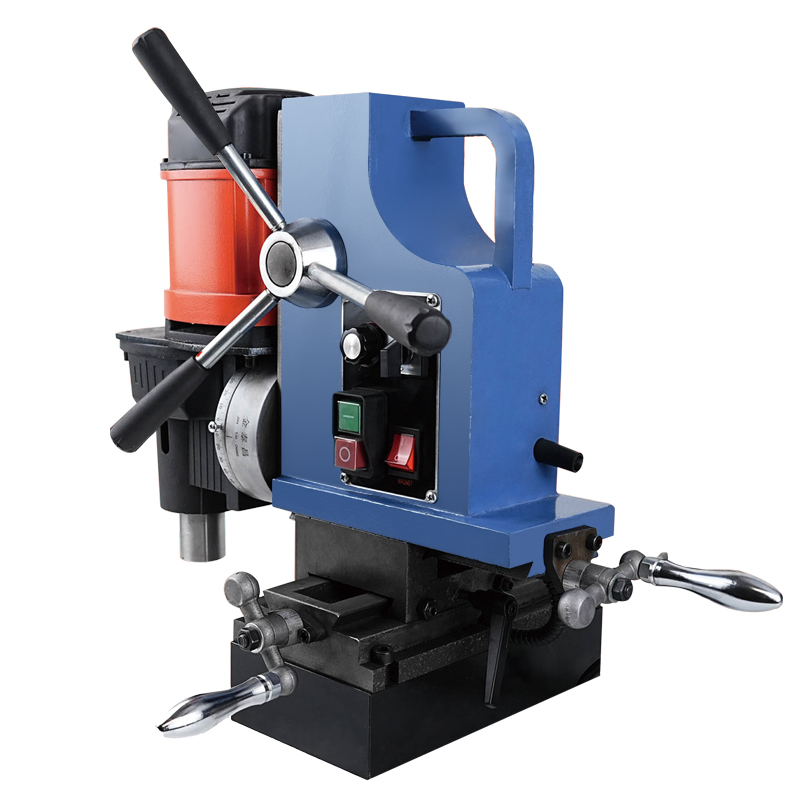

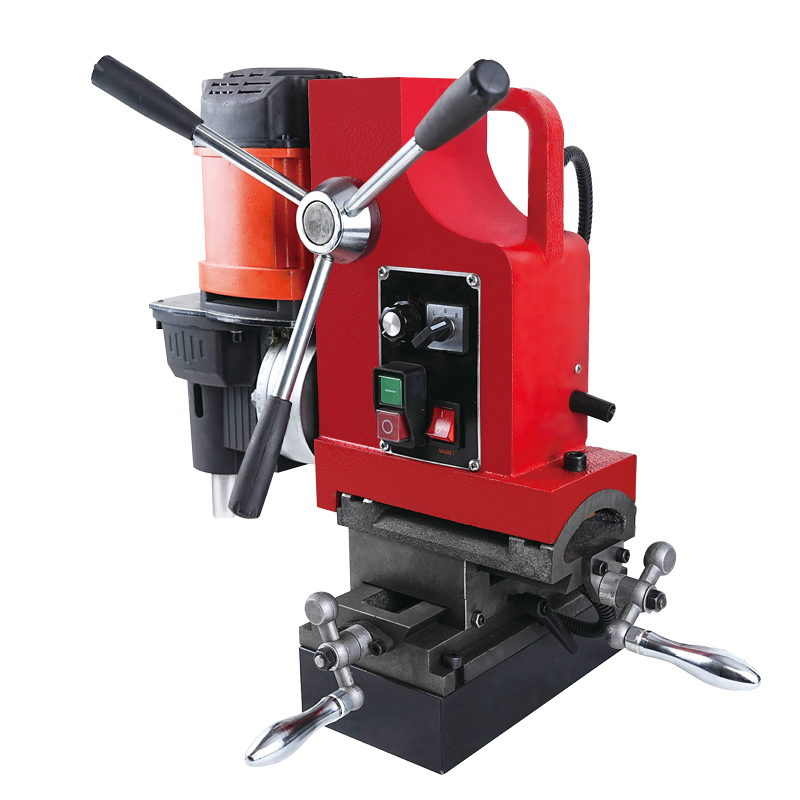

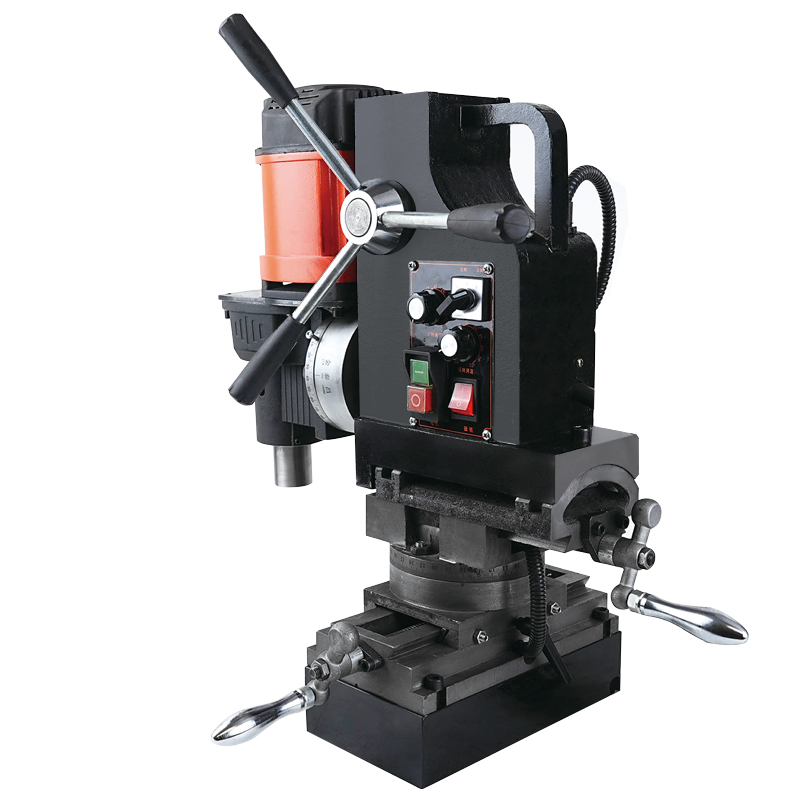

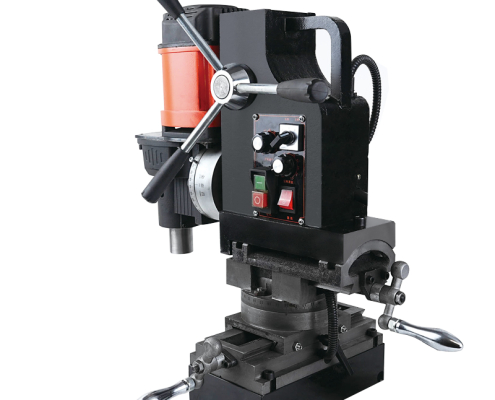

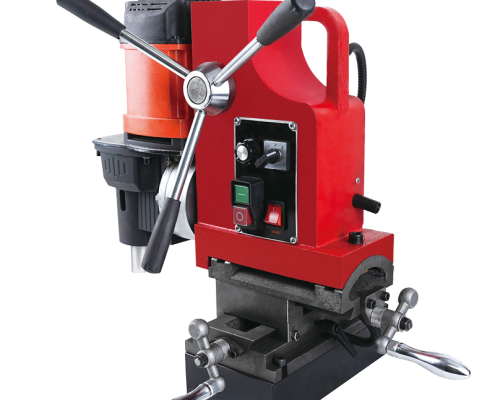

| Specification | FDX30-4axis | FDX30-5axis | FDX30-6axis |
| Overall Dimensions | 260*280*400mm | 270*420*430mm | 270*420*460mm |
| Travel | 150*100*220mm | 150*100*220mm | 100*150*220mm, |
| Weight | 45KG | 46KG | 50KG |
| Power | 220V/1500W | 220V/1500W | 220V/1500W |
| Electromagnetic Force | 32000N | 32000N | 32000N |
| Spindle/Speed | MT3, 0-1000rpm, Forward/Reverse | 0-1000, High Torque, Morse Taper No. 3 | |
| Max. Boring Diameter | 160mm | 160mm | 160mm |
| Max. Twist Drill Diameter | 30mm | 30mm | 30mm |
| Milling Cutter Diameter | 20-50mm | 20-50mm | 20mm-50mm |
| Functions | Milling, Drilling,Boring | Milling, Drilling,Boring | Milling, Drilling,Boring |
